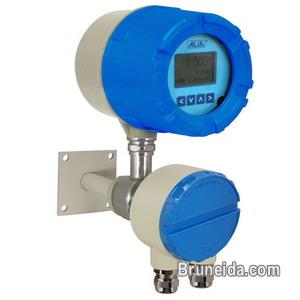

Battery powered Converter, AMC4000 ALIA Electromagnetic Flowmeter

The Aliamag AMC4000 series converter is a microprocessor based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting.

FEATURES
Battery supply feed with 2~3 years life in normal working condition.
Accuracy of +/-0. 3% value of reading
Bi-directionally measure flow and pulse output
3 lines of LCD display flowrate and totalizer
Store 99 times of flowrate & totalizer for power on/off
IP67/IP68 protection class

SPECIFICATION
Display: 3 lines of LCD
Flow Unit:M3/Hr , M3/min , M3/sec , L/Hr , L/min , L/min , GPH , GPM , GPS
Accuracy:
+/-0. 3% of reading (velocity >= 0. 5 m/s)
+/-0. 0015 m/s (velocity < 0. 5 m/s)
Pulse Output:Open collector
Load:3 ~ 30 Vdc, max. 20 mA
Pulse Rate:
1)Scaled pulse ( Liter/Pulse, other)
2)Frequency: 1~5000 Hz
Data Storage:Operation parameters and totalizer are stored by EEPROM for more than 10 years
Protection Class:
IP 67
IP 68(Submersible)
Explosion Proof, Exd(ib)ibqIIBT5
Ambient Temp. :-25 ~ +65deg. C
Power Supply:3. 6V battery, Size D
Battery Life:2~3 years
Weight:
2. 0 Kg (Compact)
4. 3 Kg (Separate)
Mounting:
Wall mounting
Bracket on 2´´ pipe
Compact version(Install on sensor)
